Handheld Laser Marking Machine

Handheld Laser Marking Machine

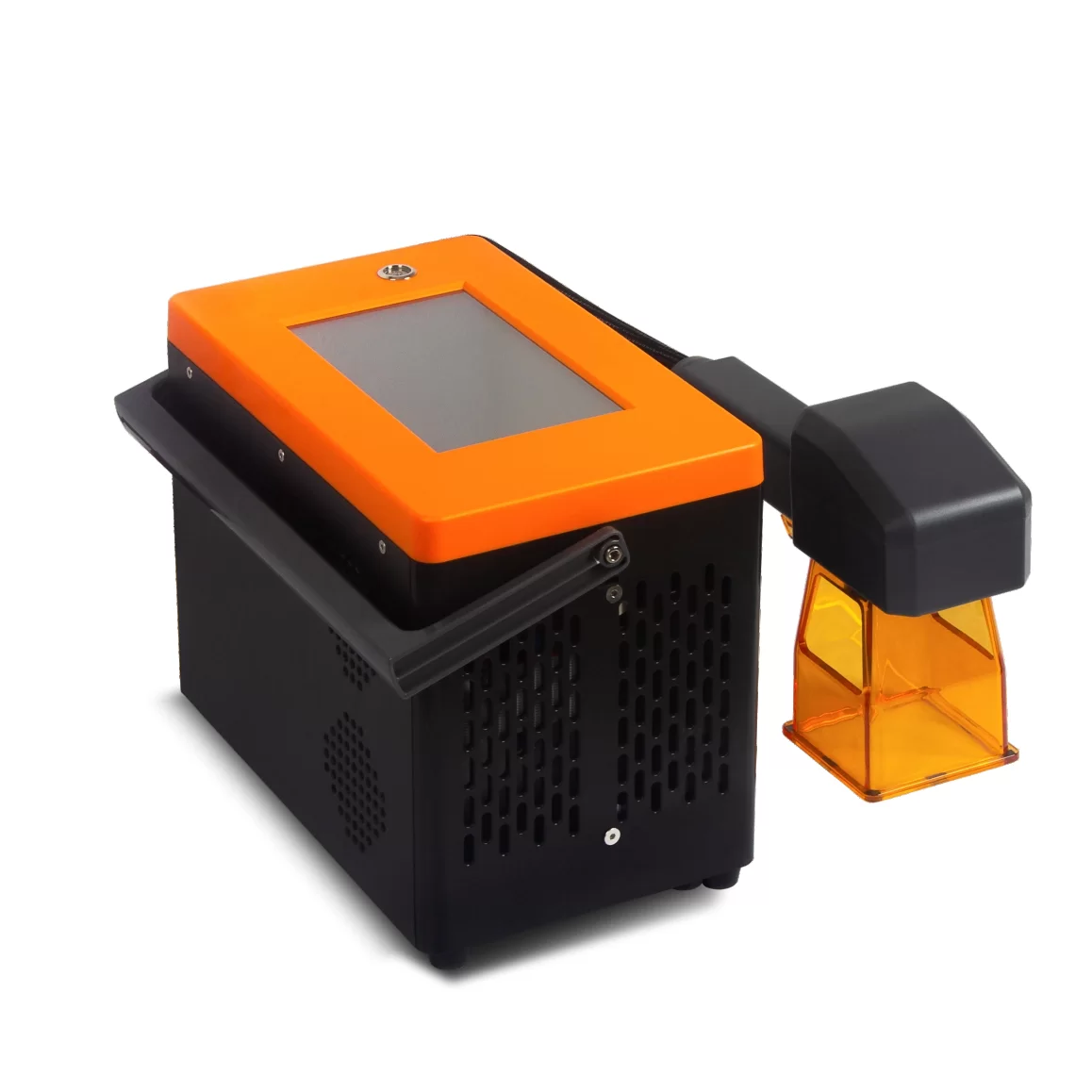

A handheld laser marking machine is a portable laser marking device. Its core is to focus a high-energy laser beam on the surface of a material through a handheld laser emitting unit, causing physical or chemical changes in the material, thereby forming a permanent and fine mark.


Handheld Laser Marking Machine
Handheld Laser Marking Machine
Download
Product Introduction

Handheld laser marking machines can be moved for operation – there is no need to move materials like a desktop machine, and marking can be done directly on site; it has a wide range of applications and can mark both metals and non-metals; the marking is wear-resistant and requires no consumables, and the operation is also simple.

Feature

1.Portability: Lightweight and easy to carry, it doesn't need to be fixed in one place. You can mark directly on-site (for example, next to large equipment) without moving materials.

2.High-volume marking capability: It can mark both metals (stainless steel, aluminum) and non-metals (plastic, wood) without having to change equipment.

3.High-quality marking and cost-effectiveness: The markings are durable and require no consumables, using only electricity, resulting in low long-term costs.

4.Easy to operate: Parameter adjustment is simple, making it easy for even novice users to use.

Application

The application scenarios of handheld laser marking machines are very flexible. There is no need to carry heavy workpieces, and they can be used for on-site marking or temporary marking needs, making them suitable for a variety of practical usage scenarios.

Parameters

Modelseries

Q8A

Model

Q8A-20

Q8A-30

Q8A-50

Laserparameter

Outputpower

19.5W

26.5W

50W

BeamqualityM²

≤1.4

Pulserepetitionrate

27-60kHz

Laserwavelength

1064±5

Outputpowerstability

<3%<>

Optical properties

Marking range

100mmx100mm

Engraving depth

≤1mm(depending on power and time)

Engraving speed

≤10000mm/s

Repeatability

±0.005

Minimum marker line width

0.1mm

Minimum character height

0.15mm

Use environment

Battery life

Under normal use,it can maintain work for6-8hours

Cooling method

Built-in air cooling

Power supply to the system

500W/100-240V/50/60Hz

Other parameters

operating system

Linux operating system

file format

Software supports text,pattem,QR code,barcode,serial number,graphics and other marking content(standard USBinput)

Dimensions

Control chassis:255X135X200 mm Stamping head:270X166X273mm

Control chassis:275x150x200mm

Total weight

The whole machine is 6kg,and the headis 1.25kg

The whole machine is 6.5kg,and the head is 1.25kg

Samples
