The refrigerating air dryer is a dehydration device that lowers the temperature of compressed air through a refrigeration cycle system, maintaining the dew point of compressed air stably within the range of 3°C to 10°C (pressure dew point), effectively removing over 99% of the liquid water in the compressed air.
The refrigerated air dryer is the core equipment of the compressed air purification system, which cools the compressed air below the dew point temperature through refrigeration technology, effectively separating and removing 99.9% of the moisture and liquid oil mist. As the most widely used drying equipment in industrial production, its processing capacity covers 0.5-500m³/min, which can meet more than 90% of industrial gas drying needs.
1.Efficient dehumidification ability
(1) Three-stage gradient cooling system
(2) Patented gas-water separation technology
2. Intelligent temperature control system
(1) Dynamic dew point control
(2) Adaptive adjustment of load
3. Energy saving and environmental protection design
(1) High-efficiency heat exchange system
(2) Application of environmental protection materials
4. stable and reliable structure
(1) Durable material selection
(2) Intelligent protection system
5. Convenient maintenance design
(1) Modular structure
(2) Intelligent operation and maintenance function
6. Special environmental adaptability
(1) High-temperature configuration
(2) Explosion-proof design
1. Application in the manufacturing field
(1) Automotive manufacturing industry
(2) Electronic semiconductor industry
(3) Food and beverage processing
2. Energy and infrastructure field
(1)Power industry applications
(2)Mining engineering
(3)Rail transit
3. Medical and special fields
(1)Healthcare industry
(2)chemical process
(3)Laboratory use
4. Application in emerging technology fields
(1)3D printing industry
(2)New energy battery manufacturing
(3)Data Centers
Model | Processing capacity(Nm3 /min) | Interface pipe diameter | Power(KW) | Weight(Kg) | Dimensions(mm) (LXWXH)
|
SE-7.5A | 0.8 | ZG1" | 1/4 | 50 | 450X630X670 |
SE-10A | 1.5 | ZG1" | 1/3 | 55 | 450X630X670 |
SE-15A | 1.7 | ZG1" | 1 | 60 | 450X630X670 |
SE-20A | 2.6 | ZG1" | 1 | 80 | 450X700X920 |
SE-30A | 3.8 | ZG1 1/2" | 1.25 | 105 | 500X850X970 |
SE-40A | 5.3 | ZG1 1/2" | 2 | 130 | 500X850X970 |
SE-50A | 6.6 | ZG1 1/2" | 2 | 220 | 560X900X1070 |
SE-60A | 7.4 | ZG1 1/2" | 2 | 210 | 560X900X1070 |
SE-75A | 10.3 | ZG2" | 3.6 | 225 | 670X1180X1130 |
SE-100A(W) | 13.5 | ZG2" | 3.8 | 260 | 670X1180X1130 |
SE-120A(W) | 16.2 | DN8O | 4 | 350 | 1360X710X1186 |
SE-150A(W) | 21.6 | DN8O | 5 | 420 | 1360X710X1186 |
SE-175A(W) | 25.2 | DN8O | 5.5 | 450 | 1550X850X1400 |
SE-200A(W) | 28.3 | DN8O | 5.5 | 490 | 1550X850X1400 |
SE-300A(W) | 36 | DN8O | 7.5 | 550 | 1600X950X1620 |
SE-350A(W) | 45 | DN100 | 10 | 660 | 1810X1090X1698 |
Items | Pictures |

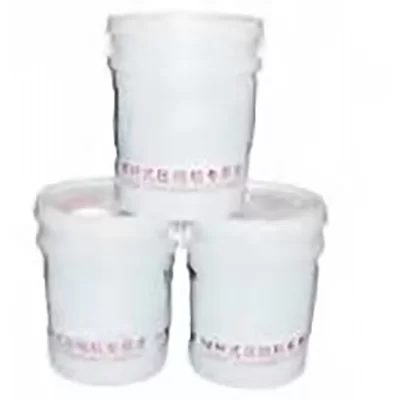

Special lubricating coolant |
|

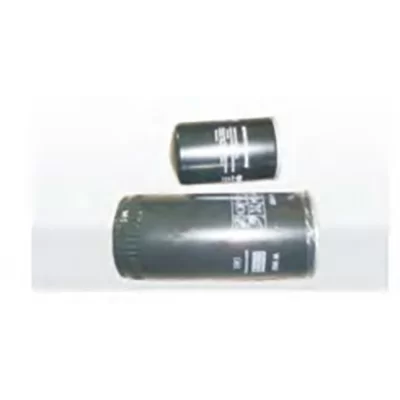

Oil filter |
|

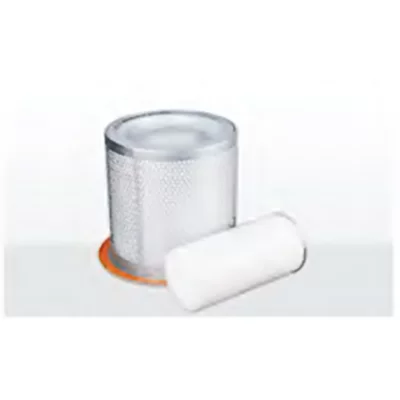

Oil and gas separator core |
|

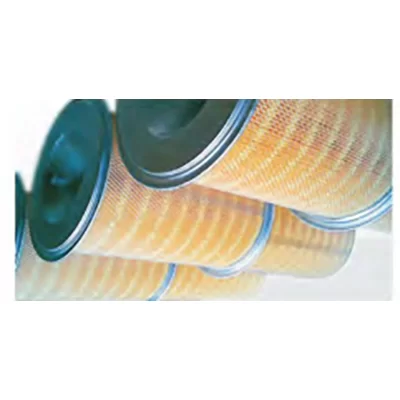

Air filter element |
|
SKF heavy-duty bearings |
|
