The handheld welding machine is a simple and efficient welding equipment with small size, easy operation and fast welding speed.

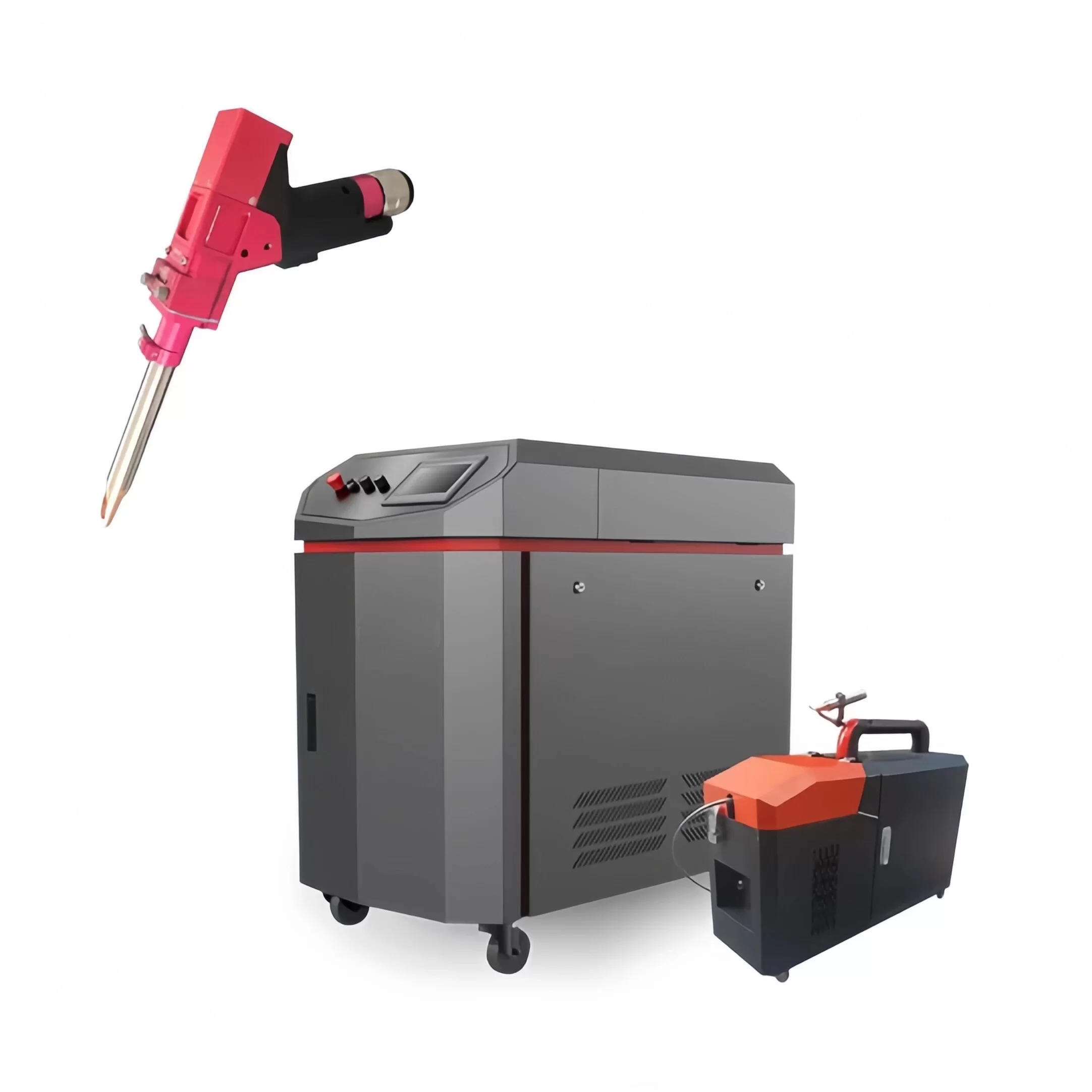

The handheld laser welder is a new generation of portable laser welding equipment. It uses a high-energy laser beam to precisely melt metal, achieving industrial-grade precision welding without the need for specialized welding skills. The flexible movement of the main unit combined with the handheld welding torch completely solves the on-site welding challenges of large work pieces and complex structures!
1. High welding speed, approximately 2-10 times faster than traditional welding, and eye-friendly.
2. The welding machine is easy to learn and operate, requiring no certification. Even novice welders can easily create beautiful welds.
3. A single pull creates a smooth, beautiful weld seam, with minimal additional polishing required, saving time and labor costs.
4. The high-precision laser welding head overcomes the disadvantage of a small laser welding spot, expanding the tolerance range of the processed component and the weld width for optimal weld formation.
5. The welded work piece remains stable, leaving no weld scars and maintaining a secure weld.

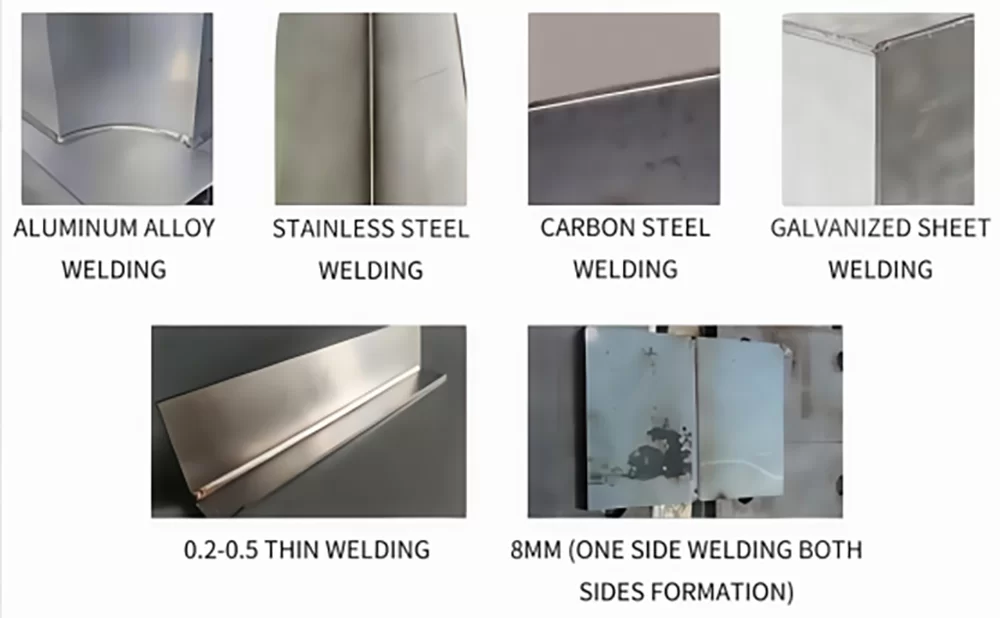

Laser welding can be used in welding stainless steel,aluminum alloy,carbon steel,galvanized and so on.
1500w
Description | Grade | LN- HW 1500 |
Handheld welding machine | Power | 1500W |
Cooling | Water-cooling | |
Net weight | 50kg | |
Volume | 0.1m³ | |
Dimensions | 700*300*508mm | |
Gun weight | 0.5kg | |
Operating mode | Continuous/Pulse | |
Wobble width | 0-5mm | |
Input voltage | 220VAC | |
Rated power | 2500W | |
Working temperature | 0-40℃ |
2000w
Description | Grade | LN- HW 2000 |
Handheld welding machine | Power | 2000w |
Dimension | 1550L*870W*1180H(mm) | |
Laser Wavelength | 1085nm±5nm | |
Fiber Length | 10m Standard | |
Welding Head | 0.5kg Rotary Lens Welding Head | |
Way of Working | Continuous/Pulse | |
Aiming and Positioning | Red Light Positioning | |
Welding penetration(mm/s) | 0.5-5mm | |
Welding Gap Request | 0.5mm for swing weld gap,≤1.2mm for filler welding gap(the welding gap must be less than 0.3 times the metal thickness). | |
Operating Voltage | AC220V、50Hz&60Hz | |
Gas | Nitrogen,Argon,Air |
3000w
Description | Grade | LN- HW 3000 |
Handheld welding machine | Power | 3000W |
Cooling | Water-cooling | |
Net weight | 50kg | |
Volume | 0.1m³ | |
Dimensions | 700*300*508mm | |
Fiber Length | 10m Standard | |
Operating mode | Continuous/Pulse | |
Wobble width | ≤0.5-8mm | |
Input voltage | AC380V50HZ or 60HZ | |
Welding gap | ≤1.2mm | |
Working temperature | 0-40℃ |
Items | Specification | |
Gun Weight | 0.5KG |
|

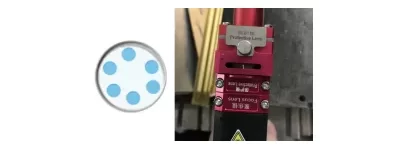

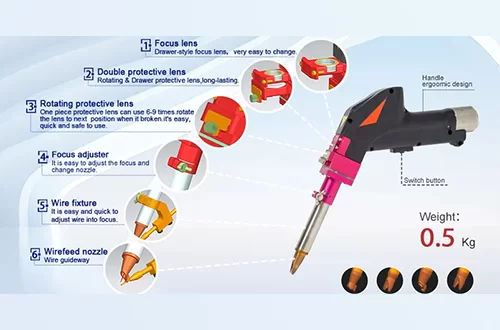

Protective lens | 1.Each piece can use 6 times due to rotative design, not necessary to replace frequently. 2.Double protective lenses. |
|

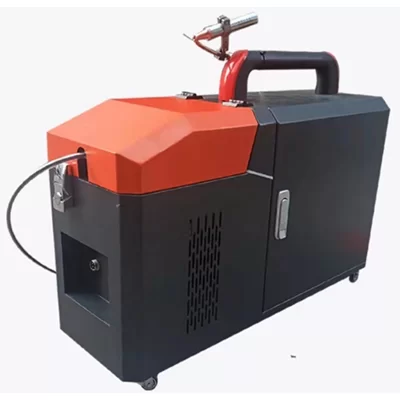

Wire feeder | 1.System linkage control wire feeding,easier to control and operate. 2.Stepping motor, four-wheel drive,feed more precisely and stably. 3.Apart from 5356 aluminum, can weld 4043 aluminum 1.0-1.2mm diameter well. |
|

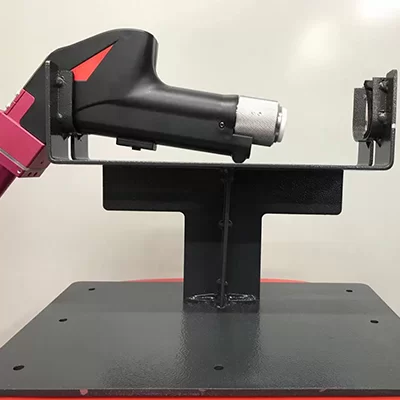

Gun holding rack | Has gun holding rack to place welding gun, to avoid accidental damage. |
|

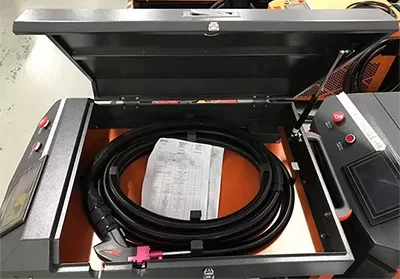

Machine body case | Machine body case is designed to place welding gun inside, to avoid welding gun being dusted and dirty. |
|

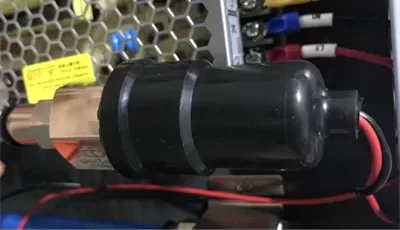

Gas Monitor Function | Has gas monitor function to ensure welding quality. When gas is not enough or stopped supplying, machine will alarm to remind workers. |
|
Focus Adjustment | Exclusive focus Adjustment Fixture makes it much easier and more precise to adjust laser focus. | Video showing |
Process Parameters Storage | Up to 30 parameter setting packages can be saved. | |
Independent R&D | 1.Mainly focuses on welding industry, has independent R&D team and is able to upgrade product and welding processes very fast. 2.Including air cooling fiber laser source department, welding software department, all kind of Welding head department and 6 axis Robot software development. | |
